Linux环境安装GigE-V Framework并用C#进行线阵相机连接和拍照

于由editor发布

0. 背景介绍

在Windows下用C# 进行DALSA相机的相关开发时，首推Sapera LT SDK，下载链接https://www.teledynevisionsolutions.com/products/sapera-lt-sdk/?model=sapera-lt-sdk&vertical=tvs-dalsa-oem&segment=tvs。如果项目部署到Linux，则需要以P/Invoke的形式调用C++ SDK。由于SDK只带了c, c++和python的demo，网上相关的C# 文档几乎没有，所以在此分享一些心得。

1. 基本环境介绍

相机：Teledyne DALSA线阵相机

测试环境：VMWARE + Debian 11 AMD64

正式环境：RK3588 + Debian11 ARM64

2. SDK

2.1 SDK下载（支持主流架构的Linux）

https://www.teledynevisionsolutions.com/support/support-center/software-firmware-downloads/dalsa/download-gige-v-linux-sdk/

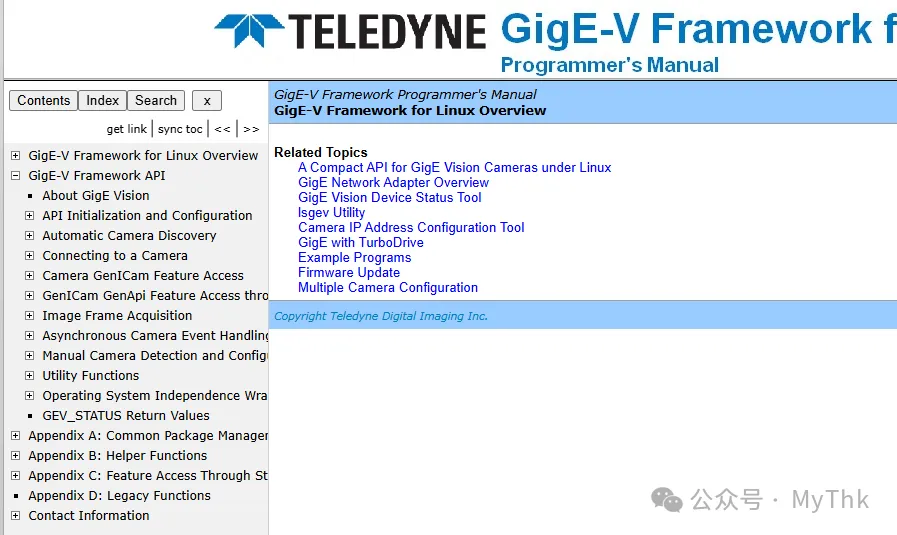

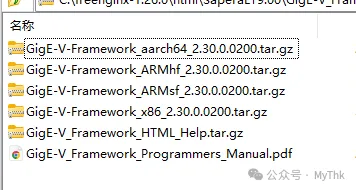

其中，aarch64, ARMhf, ARMsf, x86对应不同的架构，HTML_Help和Programmers_manual.pdf 是html形式和pdf形式的手册。

2.2 SDK安装

a. 安装编译工具

apt install make build-essential libtiff-dev

b. 安装桌面应用必备组件、Python依赖

    sudo apt install install python3-tk python3-pil.imagetk libgtk-3-dev libglade2-0 libglade2-dev

    c. 解压并运行安装脚本

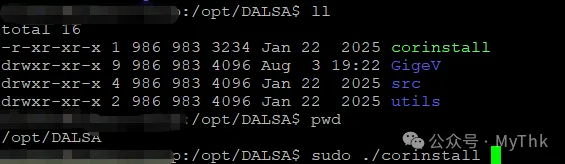

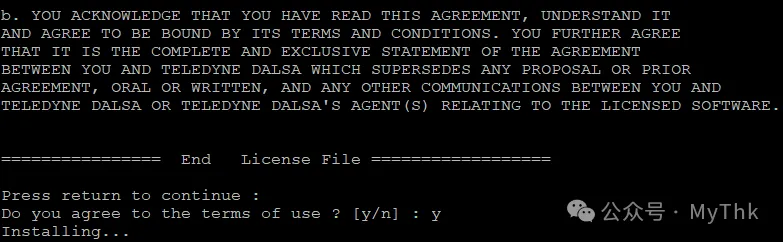

    根据部署环境选择对应的SDK包：RK3588主板使用aarch64包，AMD64使用x86包。上传以后解压到任意目录，执行 sudo ./corinstall，阅读协议并接受后将自动开始安装过程。

    3. 相机操作

    3.1 基本流程

    sdk安装完成后，库文件位置在/usr/local/lib/libGevApi.so。应用启动后需要第一时间调用GevApiInitialize()进行初始化 -> 调用GevGetCameraList()获取相机列表 -> 调用GevOpenCamera()打开相机，该方法会返回这个相机的指针，后续针对这个相机的所有操作都使用该指针。比较特殊的是GevCloseCamera()，需要使用指针的指针。


[DllImport(LIBNAME, CallingConvention = CallingConvention.Cdecl)]
public static extern int GevApiInitialize();

[DllImport(LIBNAME, CallingConvention = CallingConvention.Cdecl)]

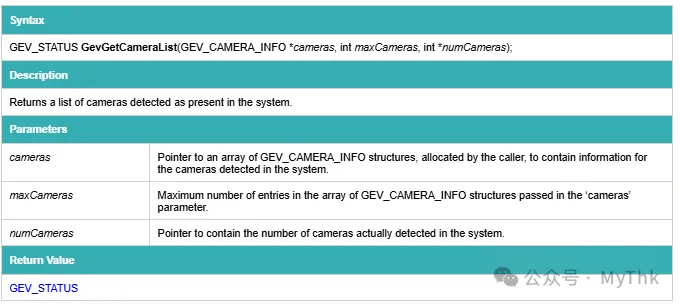

public static extern int GevGetCameraList(
    nint cameraInfoArray,
    int arraySize,
    out uint actualCount
);

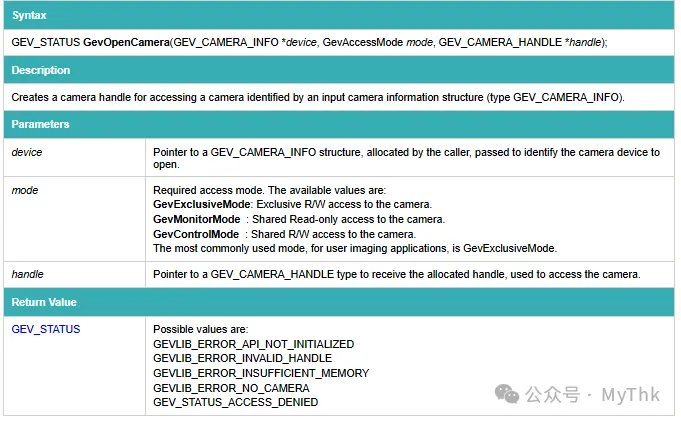

[DllImport(LIBNAME, CallingConvention = CallingConvention.Cdecl)]
public static extern int GevOpenCamera(
    IntPtr cameraInfo,
    uint accessMode,
    out IntPtr cameraHandle
);

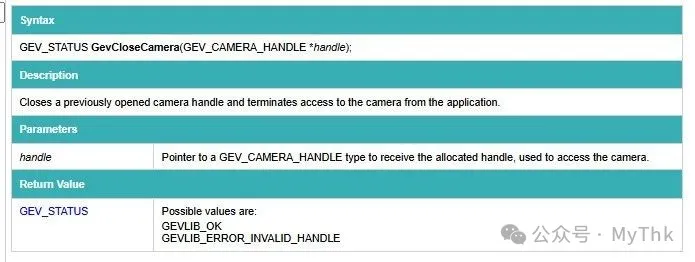

[DllImport(LIBNAME, CallingConvention = CallingConvention.Cdecl)]
public static extern int GevCloseCamera(ref IntPtr cameraHandle);

    3.2 获取和设置参数

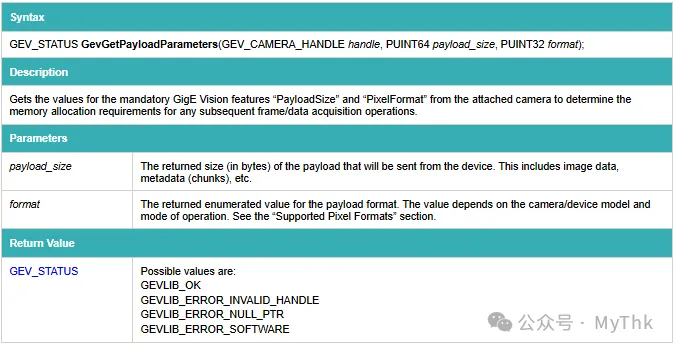

    a. 使用GevGetPayloadParameters()获取PayloadSize和PixelFormat。

    [DllImport(LIBNAME, CallingConvention = CallingConvention.Cdecl)]
public static extern int GevGetPayloadParameters(
    IntPtr cameraHandle,
    out ulong payloadSize,
    out uint pixelFormat
);
//常用的PixelFormat枚举
public enum GevPixelFormats : uint
{
    Mono8 = 0x01080001,
    Mono12 = 0x01100005,
    Mono12Packed = 0x010C0006,
    Mono16 = 0x01100007
}

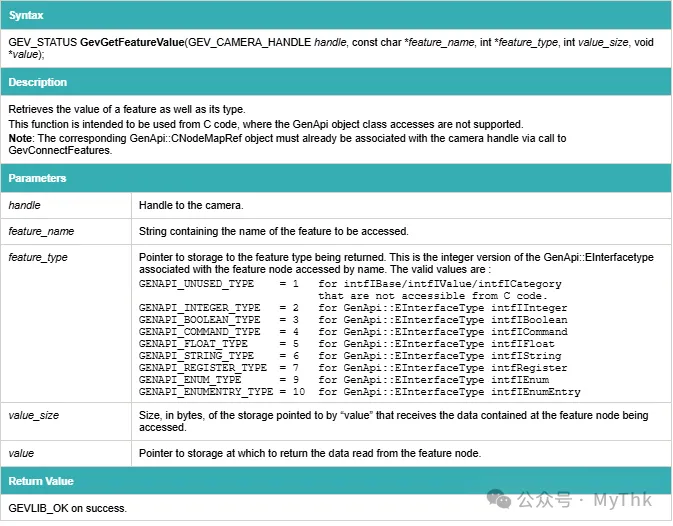

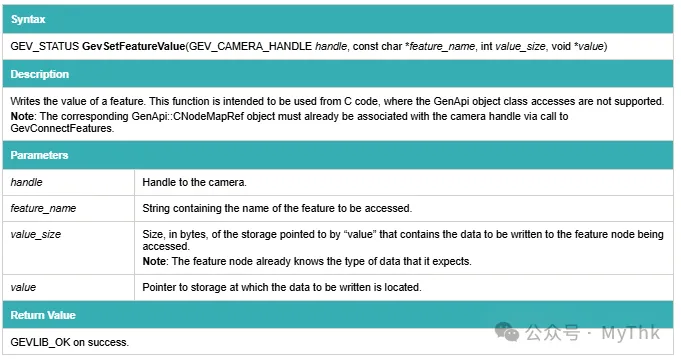

    b. GevGetFeatureValue()获取指定项目的参数值，GevSetFeatureValue()设置指定项目的参数值


[DllImport(LIBNAME, CallingConvention = CallingConvention.Cdecl)]
public static extern int GevGetFeatureValue(
    IntPtr handle,
    string feature_name,
    out int feature_type,
    int value_size,
    IntPtr value
);
[DllImport(LIBNAME, CallingConvention = CallingConvention.Cdecl)]
public static extern int GevSetFeatureValue(
    IntPtr handle,
    string featureName,
    int valueSize,
    IntPtr valuePtr
    );

    3.3 流传输器操作

    GevInitializeTransfer()和GevStartTransfer()初始化和开启Stream Transfer；GevStopTransfer()关闭Transfer；GevAbortTransfer()直接放弃当前帧直接关闭Transfer.



[DllImport(LIBNAME, CallingConvention = CallingConvention.Cdecl)]

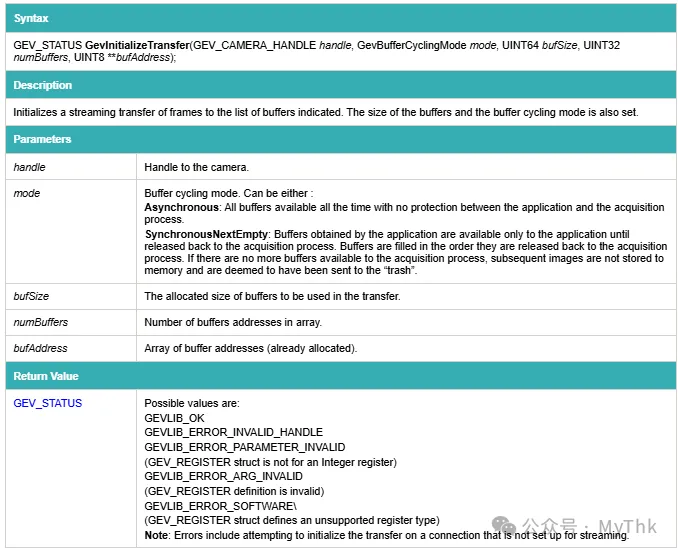

public static extern int GevInitializeTransfer(
    IntPtr cameraHandle,
    int transferMode,
    ulong bufferSize,
    uint numBuffers,
    IntPtr bufferAddresses
);
[DllImport(LIBNAME, CallingConvention = CallingConvention.Cdecl)]
public static extern int GevAbortTransfer(IntPtr cameraHandle);
[DllImport(LIBNAME, CallingConvention = CallingConvention.Cdecl)]
public static extern int GevStopTransfer(IntPtr cameraHandle);
[DllImport(LIBNAME, CallingConvention = CallingConvention.Cdecl)]

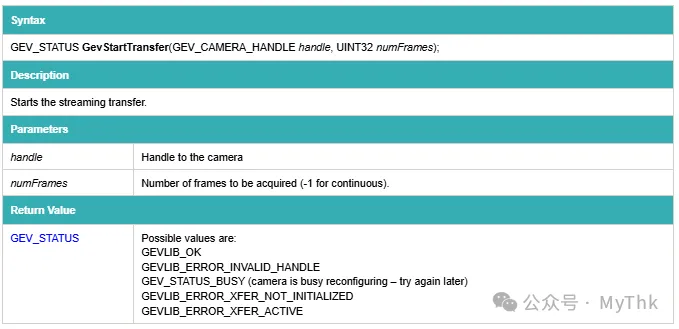

public static extern int GevStartTransfer(IntPtr cameraHandle, uint numImages);

    3.4 拍照

    拍照分两种形式，主动抓取和注册回调，高速抓拍模式下推荐使用循环，在循环内部主动抓取。主动抓取的流程GevWaitForNextFrame() -> GevReleaseFrame()。

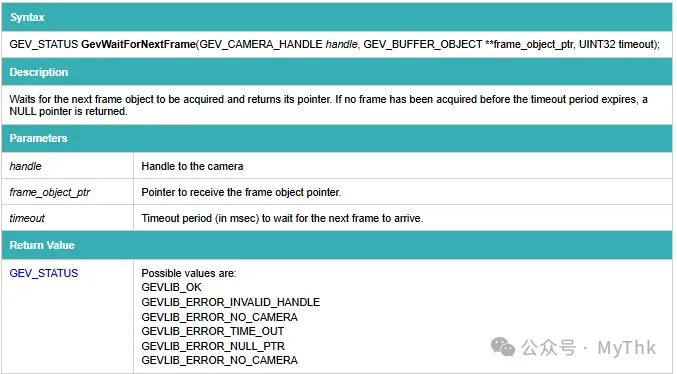

[DllImport(LIBNAME, CallingConvention = CallingConvention.Cdecl)]
public static extern int GevWaitForNextFrame(
    IntPtr cameraHandle,
    out IntPtr frameBuffer,
    uint timeoutMs
);

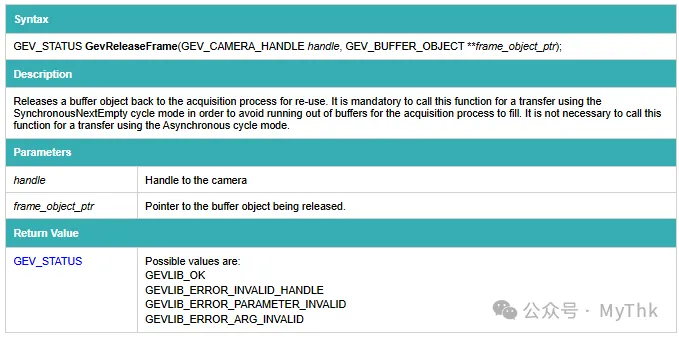

[DllImport(LIBNAME, CallingConvention = CallingConvention.Cdecl)]
public static extern int GevReleaseFrame(IntPtr cameraHandle, IntPtr frameBuffer);

    4 DEMO

    program.cs


internal class Program
{
    /// <summary>
    /// 内存DUMP比结构体定义大了4个字节
    /// </summary>
    static readonly int lineaCamInfoSize = Marshal.SizeOf(typeof(GEV_CAMERA_INFO)) + 4;
    static LinearCamera cam = null;
    static void Main(string[] args)
    {
        _ = LinearCamera.GevApiInitialize();
        Console.WriteLine("AccessMode:\r\n4 - exclusive\r\n2 - control\r\n0 - monitor");
        string input = Console.ReadLine();
        while (true)
        {
            if (!uint.TryParse(input, out uint acc))
            {
                Console.WriteLine($"无效的输入 #{input}#，有效值为 0,2,4");
                input = Console.ReadLine();
                continue;
            }
            if (acc != 0 && acc != 2 && acc != 4)
            {
                Console.WriteLine($"无效的输入 #{input}#，有效值为 0,2,4");
                input = Console.ReadLine();
                continue;
            }

            Thread.Sleep(2000);
            CallInitLinearCemeras(acc);
        }
    }
    static bool CallInitLinearCemeras(uint acc)
    {
        bool res;
        IntPtr cameraInfoArray = Marshal.AllocHGlobal(lineaCamInfoSize * 16);
        res = InitLinearCameras(cameraInfoArray, acc);
        Marshal.FreeHGlobal(cameraInfoArray);
        return res;
    }
    private static bool InitLinearCameras(nint cameraInfoArray, uint acc)
    {
        int ret = LinearCamera.GevGetCameraList(cameraInfoArray, 16, out uint cameraCount);
        if (ret != 0 || cameraCount == 0)
        {
            Console.WriteLine($"{ret}: {(ret == 0 ? "相机数量 0" : "获取相机错误")}");
            return false;
        }
        Console.WriteLine($"InitLinearCameras：{cameraCount} 相机");
        for (int i = 0; i < cameraCount; i++)
        {
            var camInfo = Marshal.PtrToStructure<GEV_CAMERA_INFO>(new IntPtr(cameraInfoArray.ToInt64() + i * lineaCamInfoSize));
            string sn = Encoding.ASCII.GetString(camInfo.serial).Trim('\0');
            string model = Encoding.ASCII.GetString(camInfo.model).Trim('\0');
            string version = Encoding.ASCII.GetString(camInfo.version).Trim('\0');
            string manufacture = Encoding.ASCII.GetString(camInfo.manufacturer).TrimEnd('\0');

            Console.WriteLine($"尝试打开 #{i + 1}, IP: {camInfo.ipAddr} {LinearCamera.IpAddrToString(camInfo.ipAddr)}," +
                                $"mac:{camInfo.macHigh}.{camInfo.macLow},host:{camInfo.host.ipAddr} SN: {sn}, model: {model}");
            if (!model.Contains("Linea"))
            {
                Console.WriteLine("\t不是线阵相机，跳过。");
                continue;
            }
            var ptr = new IntPtr(cameraInfoArray.ToInt64() + i * lineaCamInfoSize);
            ret = LinearCamera.GevOpenCamera(ptr, acc, out nint cameraHandle);
            switch (ret)
            {
                case 0:
                    break;
                default:
                    Console.WriteLine($"打开相机 {sn} 错误: {ret:X2}");
                    return false;
            }

            int valueSize = sizeof(int);
            IntPtr valuePtr = Marshal.AllocHGlobal(valueSize);

            ret = LinearCamera.GevGetPayloadParameters(cameraHandle, out ulong payloadBytes, out uint pixelFormat);
            if (ret != 0)
            {
                Console.WriteLine($"GevGetPayloadParameters错误: {ret}");
                return false;
            }
            ret = LinearCamera.GevGetUnpackedPixelType(pixelFormat, out uint unpackedType);
            // current: mono12 unpack
            Console.WriteLine($"Payload大小: {payloadBytes}Bytes, PixelFormat: {(GevPixelFormats)pixelFormat}, 对应UNPACKED类型: {unpackedType}");

            ret = LinearCamera.GevGetFeatureValue(
                cameraHandle,
                "Width",
                out _,
                valueSize,
                valuePtr
            );
            int w = Marshal.ReadInt32(valuePtr);
            Console.WriteLine($"Width: {w}");

            ret = LinearCamera.GevGetFeatureValue(
                cameraHandle,
                "Height",
                out _,
                valueSize,
                valuePtr
            );
            int h = Marshal.ReadInt32(valuePtr);
            Console.WriteLine($"Height: {h}");

            IntPtr[] bufferAddresses = new IntPtr[2];
            for (int y = 0; y < bufferAddresses.Length; y++)
            {
                bufferAddresses[y] = Marshal.AllocHGlobal(Convert.ToInt32(payloadBytes));
            }
            Console.WriteLine($"申请内存: {bufferAddresses.Length}");

            ret = LinearCamera.GevInitializeTransfer(
                cameraHandle,
                LinearCamera.ASYNCHRONOUS,
                payloadBytes,
                2,
                Marshal.UnsafeAddrOfPinnedArrayElement(bufferAddresses, 0)
            );
            Console.WriteLine($"GevInitializeTransfer {ret}");
            if (ret != 0)
            {
                Console.WriteLine($"GevInitializeTransfer错误: {ret}");
                return false;
            }

            ret = LinearCamera.GevStartTransfer(cameraHandle, 0xFFFFFFFF);
            Console.WriteLine($"GevStartTransfer: {ret}");
            if (ret != 0)
            {
                Console.WriteLine($"GevStartTransfer错误: {ret}");
                return false;
            }

            cam = new(model, sn);
            cam.Start(cameraHandle, payloadBytes, ref cameraInfoArray);
            break;
        }
        return true;
    }
}

    LinearCamera.cs


public class LinearCamera(string model, string sn)
{
    #region 项目私有定义
    public string Model { get; set; } = model;
    public string SN { get; set; } = sn;
    private nint _handle = IntPtr.Zero;
    public static string IpAddrToString(uint ip) => $"{(ip >> 24) & 0xFF}.{(ip >> 16) & 0xFF}.{(ip >> 8) & 0xFF}.{ip & 0xFF}";
    public void Start(nint cameraHandle, ulong payloadBytes, ref nint cameraInfoArray)
    {
        _handle = cameraHandle;
        int frameCount = 0;
        List<ushort[]> lines = [];
        while (true)
        {
            int status = GevWaitForNextFrame(cameraHandle, out nint frameBuffer, 100);
            if (status != 0 || frameBuffer == IntPtr.Zero)
            {
                Console.WriteLine($"GevWaitForNextFrame 错误: {status}");
                Cleanup();
                Thread.Sleep(500);
                break;
            }
            try
            {
                GEVBUF_HEADER frame = Marshal.PtrToStructure<GEVBUF_HEADER>(frameBuffer);
                Console.WriteLine($"抓取 0x{frame.address:X2}, {frameCount}: {frame.w} x {frame.h}, {frame.recv_size}Bytes");
                ushort[] pixels = new ushort[payloadBytes / 2];
                unsafe
                {
                    fixed (ushort* pPixels = pixels)
                    {
                        Buffer.MemoryCopy(frame.address.ToPointer(), pPixels, payloadBytes, payloadBytes);
                    }
                    Console.WriteLine($"pixels:{pixels.Length}");
                    _ = GevReleaseFrame(cameraHandle, frameBuffer);
                }
                frameCount++;
            }
            catch (Exception ex)
            {
                Console.WriteLine($"LinearCamera.Start.Exception: {ex.Message}");
            }
            Cleanup();
            Thread.Sleep(500);
            break;
        }
    }
    public void Cleanup()
    {
        Console.WriteLine($"清理: _handle:{_handle}");
        if (_handle != IntPtr.Zero)
        {
            Console.WriteLine($"GevAbortTransfer:{GevAbortTransfer(_handle)}\t_handle:{_handle}");
            Console.WriteLine($"GevFreeTransfer:{GevFreeTransfer(_handle)}\t_handle:{_handle}");
            Console.WriteLine($"GevCloseCamera:{GevCloseCamera(ref _handle)}\t_handle:{_handle}");
            _handle = IntPtr.Zero;
            Console.WriteLine($"释放相机 {Model} [{SN}].");
        }
    }
    #endregion

    #region API函数
    [DllImport(LIBNAME, CallingConvention = CallingConvention.Cdecl)]
    public static extern int GevApiInitialize();

    [DllImport(LIBNAME, CallingConvention = CallingConvention.Cdecl)]
    public static extern int GevGetCameraList(
        nint cameraInfoArray,
        int arraySize,
        out uint actualCount
    );

    [DllImport(LIBNAME, CallingConvention = CallingConvention.Cdecl)]
    public static extern int GevOpenCamera(
        IntPtr cameraInfo,
        uint accessMode,
        out IntPtr cameraHandle
    );

    [DllImport(LIBNAME, CallingConvention = CallingConvention.Cdecl)]
    public static extern int GevCloseCamera(ref IntPtr cameraHandle);

    [DllImport(LIBNAME, CallingConvention = CallingConvention.Cdecl)]
    public static extern int GevGetPayloadParameters(
        IntPtr cameraHandle,
        out ulong payloadSize,
        out uint pixelFormat
    );

    [DllImport(LIBNAME, CallingConvention = CallingConvention.Cdecl)]
    public static extern int GevGetUnpackedPixelType(
        uint pixelFormat,
        out uint unpackedType
    );

    [DllImport(LIBNAME, CallingConvention = CallingConvention.Cdecl)]
    public static extern int GevGetFeatureValue(
        IntPtr handle,
        string feature_name,
        out int feature_type,
        int value_size,
        IntPtr value
    );

    [DllImport(LIBNAME, CallingConvention = CallingConvention.Cdecl)]
    public static extern int GevInitializeTransfer(
        IntPtr cameraHandle,
        int transferMode,
        ulong bufferSize,
        uint numBuffers,
        IntPtr bufferAddresses
    );
    [DllImport(LIBNAME, CallingConvention = CallingConvention.Cdecl)]
    public static extern int GevAbortTransfer(IntPtr cameraHandle);
    [DllImport(LIBNAME, CallingConvention = CallingConvention.Cdecl)]
    public static extern int GevStartTransfer(IntPtr cameraHandle, uint numImages);

    [DllImport(LIBNAME, CallingConvention = CallingConvention.Cdecl)]
    public static extern int GevWaitForNextFrame(
        IntPtr cameraHandle,
        out IntPtr frameBuffer,
        uint timeoutMs
    );
    [DllImport(LIBNAME, CallingConvention = CallingConvention.Cdecl)]
    public static extern int GevReleaseFrame(IntPtr cameraHandle, IntPtr frameBuffer);

    [DllImport(LIBNAME, CallingConvention = CallingConvention.Cdecl)]
    public static extern int GevFreeTransfer(IntPtr cameraHandle);
    #endregion

    public const string LIBNAME = "/usr/local/lib/libGevApi.so";
    public const int MAX_GEVSTRING_LENGTH = 65;
    public const int GEV_EXCLUSIVE_MODE = 0x04;
    public const int GEV_MONITOR_MODE = 0x00;
    public const int GEV_CONTROL_MODE = 0x02;
    public const int ASYNCHRONOUS = 0;
}

#region enum
public enum GevPixelFormats : uint
{
    Mono8 = 0x01080001,
    Mono8Signed = 0x01080002,
    Mono10 = 0x01100003,
    Mono10Packed = 0x010C0004,
    Mono12 = 0x01100005,
    Mono12Packed = 0x010C0006,
    Mono14 = 0x01100025,
    Mono16 = 0x01100007,
    BayerGR8 = 0x01080008,
    BayerRG8 = 0x01080009,
    BayerGB8 = 0x0108000A,
    BayerBG8 = 0x0108000B,
    BayerGR10 = 0x0110000C,
    BayerRG10 = 0x0110000D,
    BayerGB10 = 0x0110000E,
    BayerBG10 = 0x0110000F,
    BayerGR10Packed = 0x010C0026,
    BayerRG10Packed = 0x010C0027,
    BayerGB10Packed = 0x010C0028,
    BayerBG10Packed = 0x010C0029,
    BayerGR12 = 0x01100010,
    BayerRG12 = 0x01100011,
    BayerGB12 = 0x01100012,
    BayerBG12 = 0x01100013,
    BayerGR12Packed = 0x010C002A,
    BayerRG12Packed = 0x010C002B,
    BayerGB12Packed = 0x010C002C,
    BayerBG12Packed = 0x010C002D,
    RGB8Packed = 0x02180014,
    BGR8Packed = 0x02180015,
    RGBA8Packed = 0x02200016,
    BGRA8Packed = 0x02200017,
    RGB10Packed = 0x02300018,
    BGR10Packed = 0x02300019,
    RGB12Packed = 0x0230001A,
    BGR12Packed = 0x0230001B,
    RGB14Packed = 0x0230005E,
    BGR14Packed = 0x0230004A,
    RGB16Packed = 0x02300033,
    BGR16Packed = 0x0230004B,
    RGBA16Packed = 0x02400064,
    BGRA16Packed = 0x02400051,
    RGB10V1Packed = 0x0220001C,
    RGB10V2Packed = 0x0220001D,
    YUV411packed = 0x020C001E,
    YUV422packed = 0x0210001F,
    YUV444packed = 0x02180020,
    PFNC_YUV422_8 = 0x02100032,
    RGB8Planar = 0x02180021,
    RGB10Planar = 0x02300022,
    RGB12Planar = 0x02300023,
    RGB16Planar = 0x02300024,
    PFNC_BiColorBGRG8 = 0x021000A6,
    PFNC_BiColorBGRG10 = 0x022000A9,
    PFNC_BiColorBGRG10p = 0x021400AA,
    PFNC_BiColorBGRG12 = 0x022000AD,
    PFNC_BiColorBGRG12p = 0x021800AE,
    PFNC_BiColorRGBG8 = 0x021000A5,
    PFNC_BiColorRGBG10 = 0x022000A7,
    PFNC_BiColorRGBG10p = 0x021400A8,
    PFNC_BiColorRGBG12 = 0x022000AB,
    PFNC_BiColorRGBG12p = 0x021800AC
}
#endregion

#region struct
[StructLayout(LayoutKind.Sequential)]
public struct GEV_CAMERA_INFO
{
    public int fIPv6;
    public uint ipAddr;
    public uint ipAddrLow;
    public uint ipAddrHigh;
    public uint macLow;
    public uint macHigh;
    public GEV_NETWORK_INTERFACE host;
    public uint capabilities;
    [MarshalAs(UnmanagedType.ByValArray, SizeConst = LinearCamera.MAX_GEVSTRING_LENGTH)]
    public byte[] manufacturer;
    [MarshalAs(UnmanagedType.ByValArray, SizeConst = LinearCamera.MAX_GEVSTRING_LENGTH)]
    public byte[] model;
    [MarshalAs(UnmanagedType.ByValArray, SizeConst = LinearCamera.MAX_GEVSTRING_LENGTH)]
    public byte[] serial;
    [MarshalAs(UnmanagedType.ByValArray, SizeConst = LinearCamera.MAX_GEVSTRING_LENGTH)]
    public byte[] version;
    [MarshalAs(UnmanagedType.ByValArray, SizeConst = LinearCamera.MAX_GEVSTRING_LENGTH)]
    public byte[] username;
}

[StructLayout(LayoutKind.Sequential)]
public struct GEV_NETWORK_INTERFACE
{
    public int fIPv6;
    public uint ipAddr;
    public uint ipAddrLow;
    public uint ipAddrHig;
    public uint ifIndex;
}

[StructLayout(LayoutKind.Sequential)]
public struct GEVBUF_HEADER
{
    public uint payload_type;
    public uint state;
    /// <summary>
    /// 1-imcomplete.0-complete
    /// </summary>
    public int status;
    public uint timestamp_hi;
    public uint timestamp_lo;
    public ulong timestamp;
    public ulong recv_size;
    public ulong id;
    public uint h;
    public uint w;
    public uint x_offset;
    public uint y_offset;
    public uint x_padding;
    public uint y_padding;
    public uint d;
    public uint format;
    public IntPtr address;
    public IntPtr chunk_data;
    public uint chunk_size;

    [MarshalAs(UnmanagedType.ByValArray, SizeConst = 256)]
    public byte[] filename;
}
#endregion
    分类： articles

    相关文章

    articles

    完整实现基于群晖WEB API的状态监控项目

    话接上一篇快速上手——接入群晖Synology WEB API监控NA 阅读更多

    articles

    快速上手——接入群晖Synology WEB API监控NAS状态

    1. 调用认证接口获取SID (ip地址替换成自己实际的NAS ip) 阅读更多

    articles

    MVS获取当前相机支持的像素格式

    获取相机当前像素格式可以使用MV_CC_GetEnumValue，调用 阅读更多
